Key Features
- Standards Compliant: Provides stable electrical performance and complies with ANSI/TIA-568.2-D, IEC 61156, and ISO/IEC 11801 standards.
- High-Strength Sheath: Built with strong mechanical properties and high tensile and compressive strength to reduce damage during installation and project execution.
- Fluke 90 m High-Temp Tested: Delivers excellent performance in the Fluke 90-meter permanent link test while operating continuously at 50°C.
- Fluke 100 m PoE Tested: Proven reliable performance in the Fluke 100-meter channel test under continuous 72 V / 1 A DC power load (PoE).
- Pure Copper Conductor: Uses solid bare copper conductors with lower resistance for superior electrical characteristics and transmission performance.

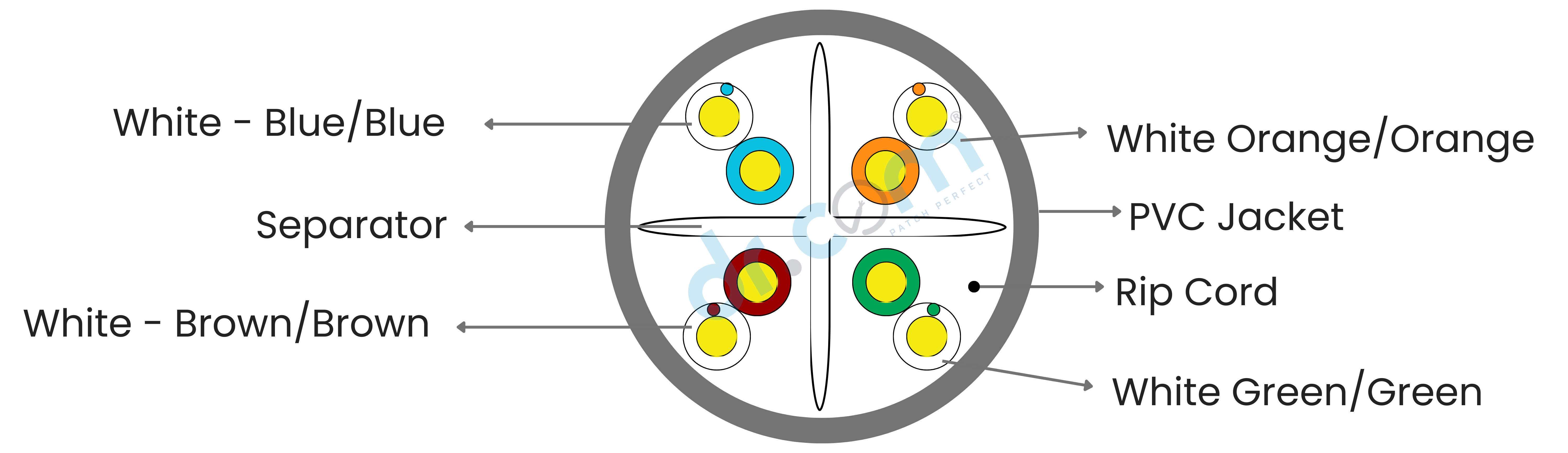

Specification
| Model | DR-CAT6A_U/UTP-CU23_PV | ||
|---|---|---|---|
| Category | CAT 6A |  |
|
| Reference Standard | ANSI/TIA 568-C.2 & ISO /IEC 11801 | ||
| Conductor | Material | Solid-Bare Copper (99.95%) | |
| Diameter | 0.57 ± 0.005 mm 23AWG | ||
| Insulation | Material | HDPE | |
| Diameter | 1.00 ± 0.05 mm | ||
| Sheath | Thickness | 0.55 ± 0.05 mm | |
| Diameter | 6.6 ± 0.50 mm | ||
| Material | PVC | ||
| Color | Grey | ||
| Rip-cord | Yes | ||
| Separator | Yes | ||
| Electrical Characteristics (20°C) | 1.0-500.0 MHz impedance | 100 ± 15 Ω | |
| 1.0-500.0 MHz delay skew | ≤ 45 ns/100 m | ||
| DC resistance | ≤ 7.22 Ω/100 m | ||
| DC conductor resistance unbalance | ≤ 4.0% | ||
| Ambient temperature | -20°C to 75°C (-4°F to 167°F) | ||
| Operating voltage | 72 V | ||
| Physical Properties | Cable length | 305 ± 0.5 m | 100 ± 0.5 m |
| Package dimension | 381 mm (W) × 381 mm (H) × 41 mm (D) | 260 mm (W) × 260 mm (H) × 108 mm (D) | |
| Weight | 13 kg Approx | 4.6 kg Approx | |
| Packing | Coil | Coil | |
Technical Performance (100 m)
| FREQ (MHz) |
ATT (20 ℃) ≤ (dB) |
RL ≥(dB) |
NEXT ≥(dB) |
PS NEXT ≥(dB) |
EL FEXT ≥(dB) |
PS EL FEXT ≥(dB) |
Phase delay ≤(ns) |
|---|---|---|---|---|---|---|---|
| 1 | 2.03 | 20.0 | 74.3 | 72.3 | 67.8 | 64.8 | 570 |
| 4 | 3.78 | 23.0 | 65.3 | 63.3 | 55.8 | 52.8 | 552 |
| 8 | 5.32 | 24.5 | 60.8 | 58.8 | 49.7 | 46.7 | 547 |
| 10 | 5.95 | 25.0 | 59.3 | 57.3 | 47.8 | 44.8 | 545 |
| 16 | 7.55 | 25.0 | 56.2 | 54.2 | 43.7 | 40.7 | 543 |
| 20 | 8.47 | 25.0 | 54.8 | 52.8 | 41.8 | 38.8 | 542 |
| 25 | 9.51 | 24.3 | 53.3 | 51.3 | 39.8 | 36.8 | 541 |
| 31.25 | 10.67 | 23.6 | 51.9 | 49.9 | 37.9 | 34.9 | 540 |
| 62.5 | 15.38 | 21.5 | 47.4 | 45.4 | 31.9 | 28.9 | 539 |
| 100 | 19.80 | 20.1 | 44.3 | 42.3 | 27.8 | 24.8 | 538 |
| 200 | 28.98 | 18.0 | 39.8 | 37.8 | 21.8 | 18.8 | 537 |
| 250 | 32.85 | 17.3 | 38.3 | 36.3 | 19.8 | 16.8 | 536 |
Cable complies to 100m Channel Link Alien cross talk as per ANSI/TIA 568.2‑D Standard Manufacturing
